AOZ S-32

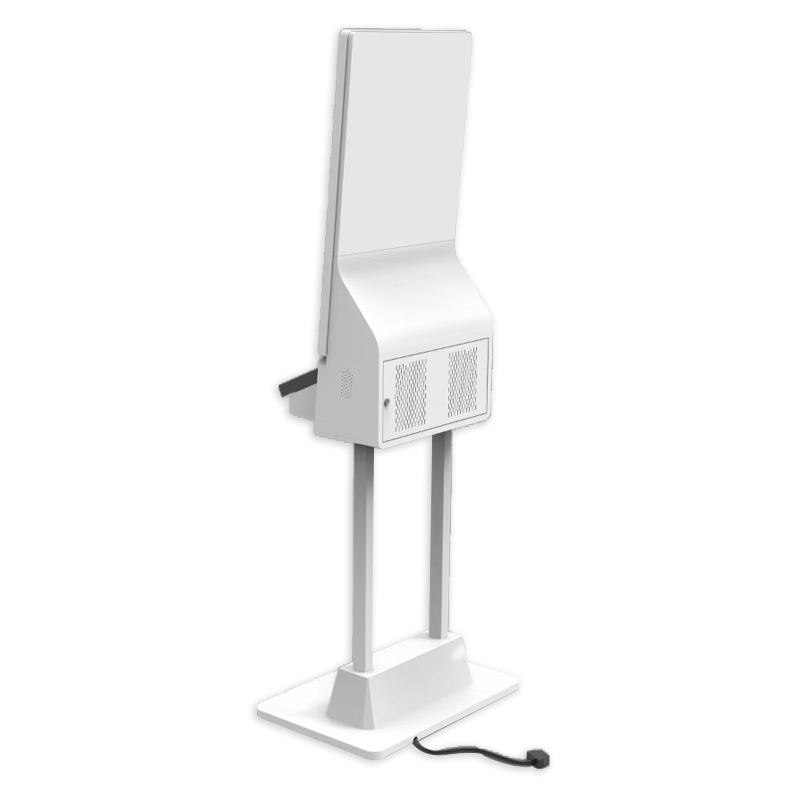

32 Inch Self-service Kiosk

Sales Enquiry
Highlight Features
  • Self-ordering kiosk saves labor cost by 50%
  • Increase turnover by 30%+
  • Reduce queue time by 40% at least
  • 2 operating systems for option
  • Many peripherials optional
  • Improve customers’ satisfaction
Key Specification
Product Specification
Screen size
32″

Brightness
350cd/m²

Resolution
1920 x 1080

Touch Screen
True-Flat Projected Capacitive Touch

OS Support
Windows 10/Android 11

CPU Support
Intel Core i5-6200U 2.3GHz(up to 2.8GHz,3MB cache)

System Memory
1x DDR4,SO-DIMM,4G,Max.16GB

Storage
1x mSATA SSD 64G (128G/256G Optional)

External I/O Port
2xUSB3.0 +6xUSB2.0, 2xRJ50 + 1xDB9, 1x DC-IN, 1x DC-OUT（Optional）, 1xVGA, 1xHDMI, 2xLAN（10/100/1000Mb）,1xAudio（3.5mm earphone connector,Support Line-Out&Line-In）

WIFI+BT
mPCI-E WiFi/BT module (optional)

Power
1 x 12V-7A/84W + 1 x 24V-2A/48W

Standard Components
80mm thermal printer,auto cutter, 170mm/sec (max.); 5MP Single camera /5MP Dual camera（Optional）, 60-80cm Proximity Sensor, 2 x 2w Speaker

Operating Temperature
0°C – 50°C

Storage Temperature
﹣20°C – 70°C

Operating Humidity
20%RH – 90%RH Non Condensing

Storage Humidity
10%RH – 90%RH Non Condensing

Principal machine size
1176*656*248mm

Optional
Sanner,MSR,Payment Device Bracket Support,NFC/RFID Reader,Status light,Projector light（customize logo）

Warranty
3 years

EMC Safety
CE, FCC,UKCA, ROHS

Chassis weight
18.1Kg

Chassis size
698*693*70mm

Column weight
18.5Kg

Column size
1305*305*265mm

Principal machine weight
36.8Kg

Product Details


Company Qualifications
FAQ
Tips: Product information and performance will be affected by upgrade iteration, specific environment and other factors, so FAQ content is for reference only. For further information, please contact online support.
Could you introduce your company?
We are a professional provider of business display intelligent terminal solutions integrating industry and trade. In addition to providing you with hardware equipment, we can also provide you with software technology and resources.
What is your products warranty and your after-sales service?
Our company is a certified national high-tech enterprise. Our products have passed ISO9001 quality management system certification, China Compulsory Certification(CCC), CE, RoHS, and other certifications.
What payment method does your company accept?
We accept most payment methods and give preference to wire transfer, Alipay.
Could you customize the product for me?
Our company supports customization of LOGO, SDK and PCBA, and provides teaching video services. If you are interested in customizing more products, please contact our sales manager.
What is your modes of transportation in logistics? What’s the delivery charge and delivery date?
Our transportation methods mainly include express delivery, sea transportation and air transportation. The delivery cost is calculated according to your address and quantity. If we have inventory, all products can be delivered within 7-10 days. If you have any customization requirements, please contact us for confirmation. Our strong R&D team can meet your special needs in a timely manner.
